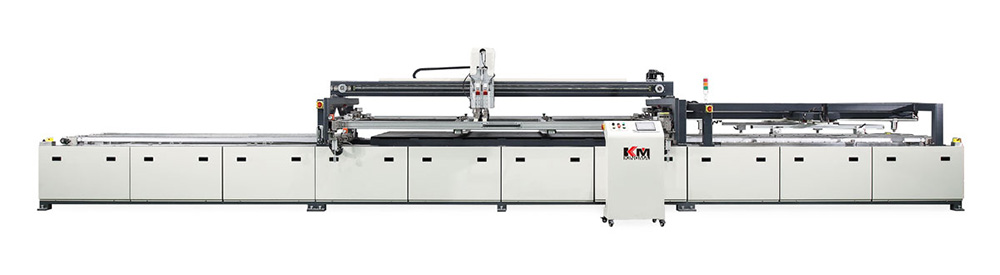

Photovoltaic Glass Screen Printing Machine
Classification:Intelligent printing machine
Series:Glass -- Household appliances / photovoltaic industry
Parameters:
Model：KM-FZBG150260
Usage：Suitable printing flat photovoltaic, building, car glass etc.
Features:
● Both automatic or manual mode workable.
● Automatic registering, automatic scraping printing, automatic discharge.
● Scrapping printing pressure automatic balance.
● Printing table has suction function.
● Via CNC panel set up net frame automatic distance .
● To keep safety, Printing machine has alarm system and mechanical protection devices.
E-mail: [email protected]
Product details
| Model： | KM-FZBG150260 |
| Max. Printing Area(Y×X)： | 1500*2600mm |
| Min. Printing Area(Y×X)： | 600*600mm |
| Max. Screen Frame Size(Y×X)： | 1800*3400mm |
| Work Table Size(Y×X)： | 1750*3150mm |
| Printing Speed： | 5~6 Pcs/min |
| Printing Thickness： | 2-8mm |
| Mechanical Repetition Accuracy： | ±0.08mm |
| Operating Air Pressure： | 0.5-0.7Mpa |
| Power： | 380V 50Hz |
| Machine Dimension（L*W*H)： | 11000×2500×2000mm |
